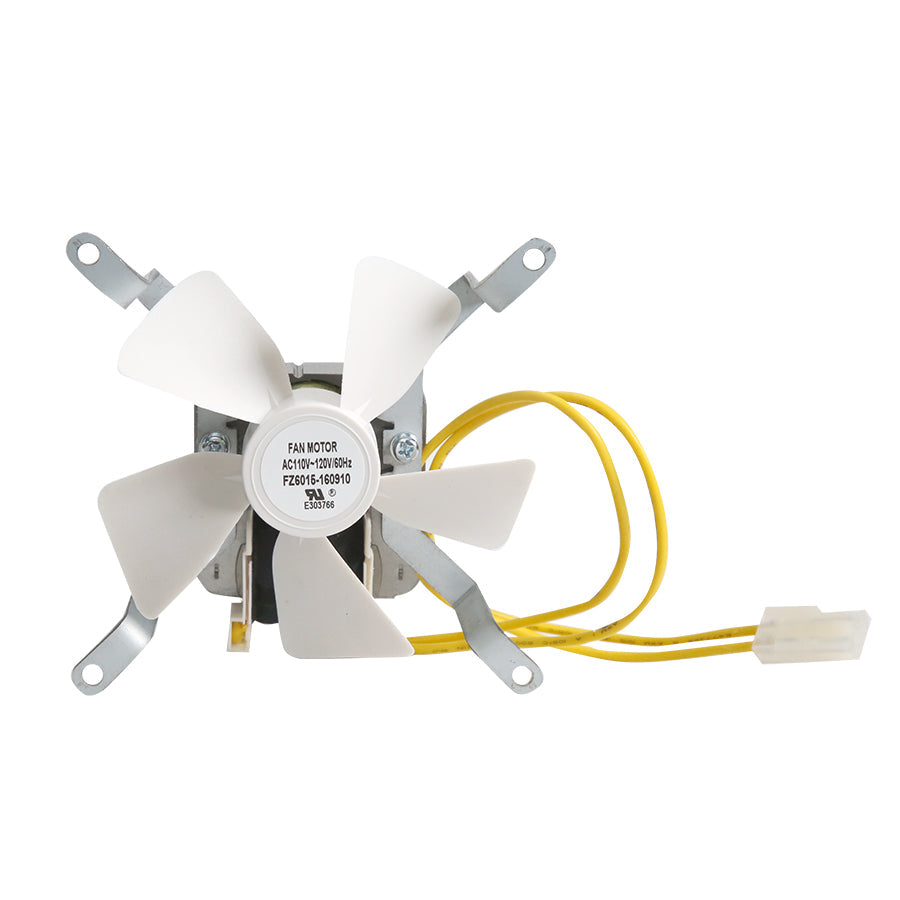

Combustion/Convection fan. White fan with silver. Two Yellow cords. clear end.
Combustion/Convection fan. White fan with silver. Two Yellow cords. clear end.

Fan - Combustion/Convection - PB Series

SKU 70133
$19.99 - $19.99
$19.99
$19.99 - $19.99
$19.99
Keep your Pit Boss running at its best with an easy-to-install Fan replacement so you can continue to smoke, roast, bake, sear, braise and more — all from one machine. Your grill's fan is responsible for distributing air and circulating that precious wood-fired smoke, helping you craft award-winning BBQ right from your backyard.

  • Compatible with all AC powered Pit Boss pellet grills & smokers (excluding the Lockhart & PB150 pellet grill)
  • Easy to install


Instructions:

  • Unplug your unit from the power supply
  • Locate the hopper access panel on the bottom of the hopper. Using a Phillips screwdriver, remove the 4-8 screws along the edges of the hopper access panel. Place aside
  • From below, locate the connectors among the colored wires. Clip zip-ties with wire cutting pliers, as needed, to expose the wires more clearly, then disconnect the fan’s white connector
  • Remove the old fan according to the diagram and install the new fan. Be careful to install the grounding terminal
  • Locate the fan’s white connector and connect
  • Take hold of the wires through the bottom of the hopper and fold them inside, behind the controller
  • After testing, re-install the hopper access panel to the bottom of the hopper. Fasten with the 4-8 screws
